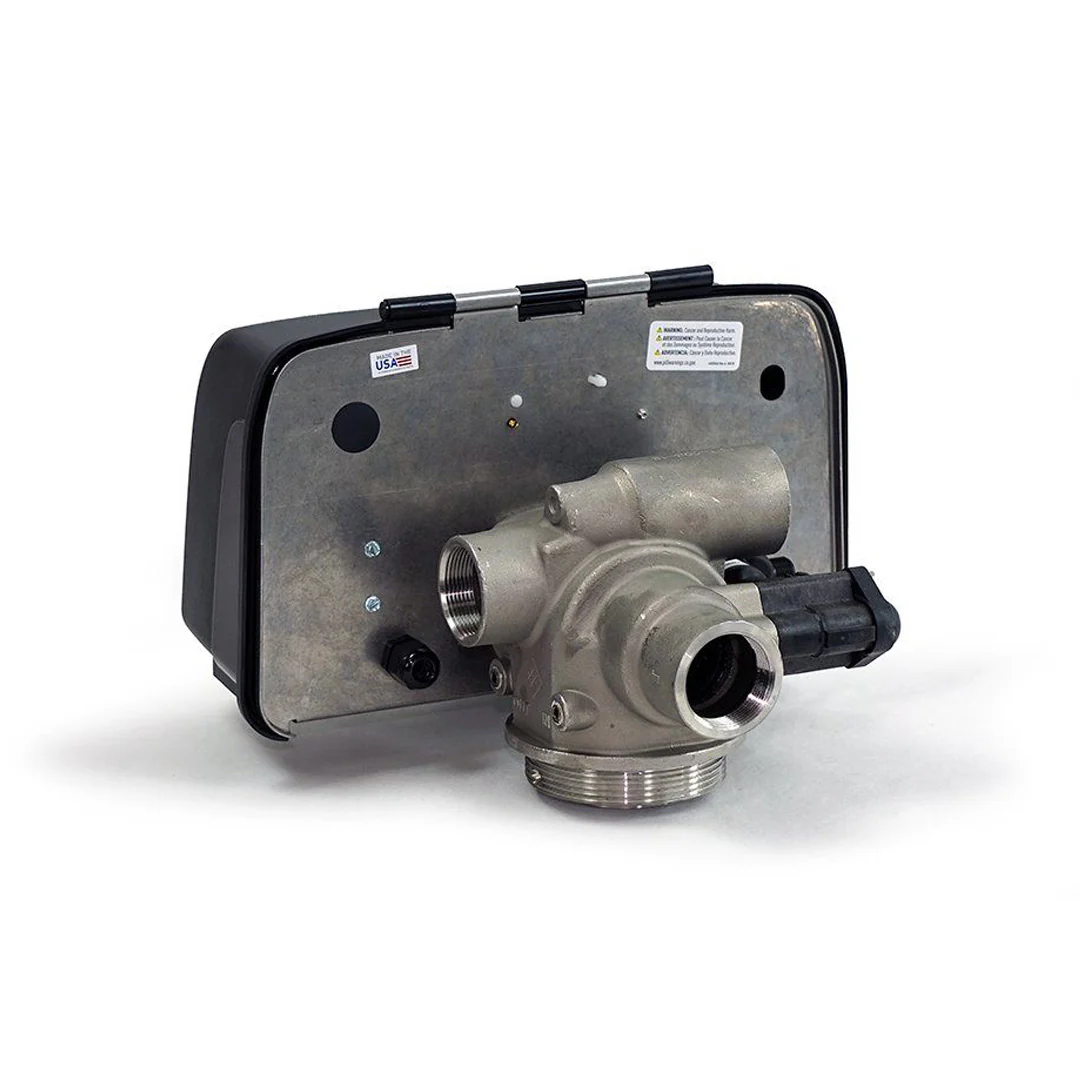

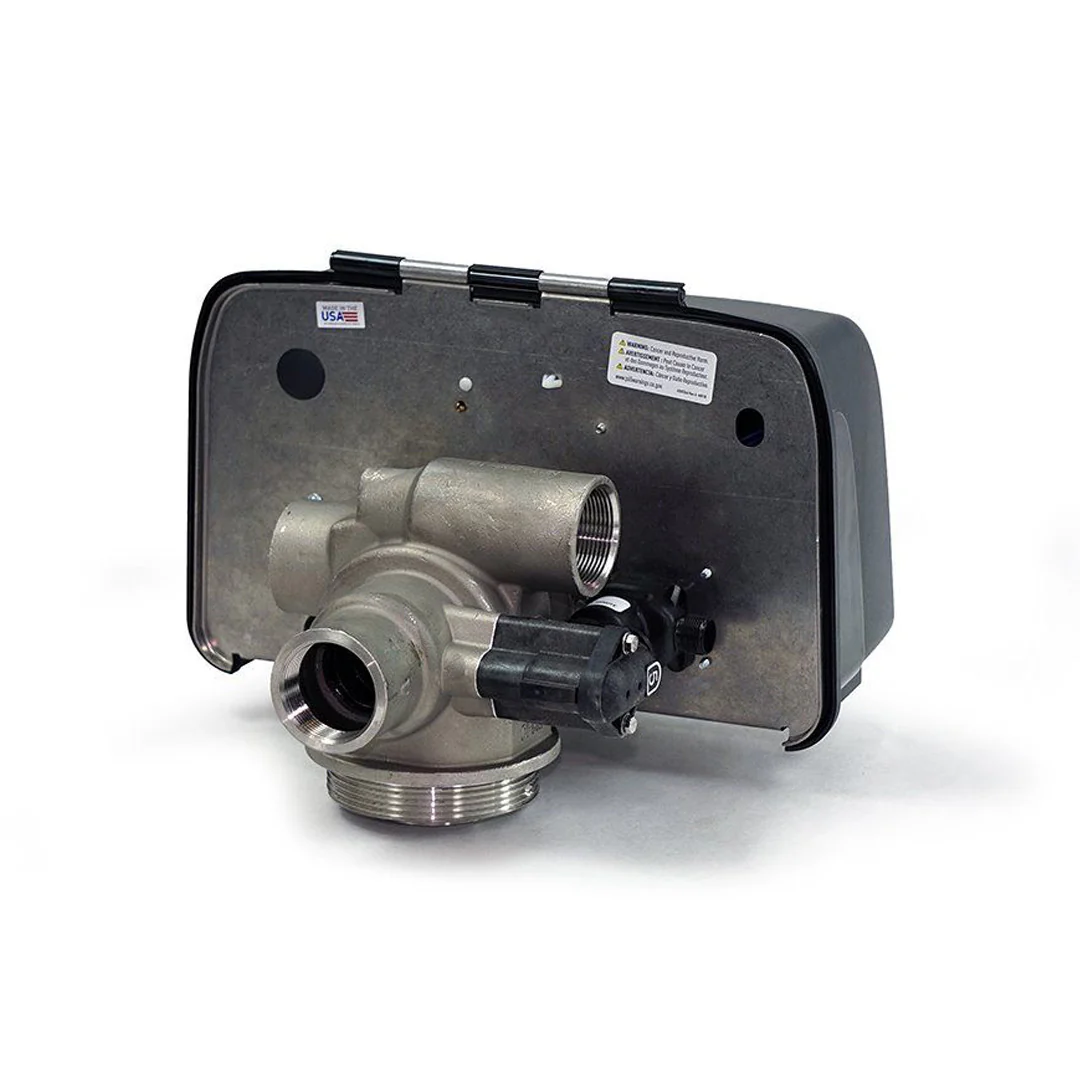

Fleck 2815 Softener Valve With NXT2 Control

Fleck 2815 NXT2 1.5" Water Softener Valve

The Fleck 2815 is a rugged commercial water softener valve with the advanced NXT2 digital control and electronic meter. The inlet and outlet is 1.5" for continuous flow rate up to 70 GPM.

Valve Options

• Piston Options
• Hard water bypass
• No hard water bypass
• Valves are custom built to the size tank it's going on

Features

• Offers best-in-class flow rates in a 1.5" commercial valve
• Multi-tank system capability
• Fully adjustable, 5-cycle control delivers controlled upflow backwash, downflow brining and slow rinse, rapid rinse, timed brine refill, and downflow service
• Time-tested, hydraulically-banalced piston for service flow and regeneration
• One-piece seal and spacer cartridge simplifies service
• 316 Grade Stainless Steel valve body for superior strength and durability
• 1.5" top mount control valve ideal for smaller size commercial/industrial applications
• Backwash capacity handles up to 36" diameter tanks for softeners
• Consistent brining regardless of salt levels with timed brine refills
• Choice of 7-or 12-day clock, manual or volume initiated timers
• Continuous service flow rate of 70 GPM with a backwash of 70 GPM

Valve Specifications

• Valve material: 316 Grade Stainless Steel
• Inlet/Outlet: 1-1/2"
• Cycles: 5
• Electrical rating: 24 v, 110-240v - 50/60 Hz
• Distributor pilot: 1-9/10" O.D.
• Drain line: 1-1/2" NPTF
• Injector brine system: 1720 - 1/2" OD Tube
• Mounting base: 4" - 8 UN
• Height from top of tank: 9"
